Ripple Tank

Mã số: P202512

Nhà sản xuất: AELAB

Mục đích:

  1. Excitation of straight wave fronts
  2. Excitation of circular waves
  3. Excitation of interfering circular waves
  4. Determining the wavelength
  5. Dopper Effect



https://en.aelab.com.vn/ripple-tank

- Ripple tank is an apparatus to do experiment about basic wave phenomena in the form of ripples on water.

- It is smartly designed, very sturdy and beautiful.

- There are two color LEDs: green and white, which are controlled by the Lamp Controller.

- Two modes for lamp: Stroboscope and normal. With stroboscope mode, the light will synchronize with the audio generator and have the same frequency as the vibrator.

- Experiments examples: Generation of circular and straight waves, reflection, refraction, diffraction, interference, doppler effect.

Including:

- Audio Generator 0 - 2000Hz

- Lamp Controller

- Vibrator

- Lamp

- Adjustable stand base

- Ripple tank with projection mirror, viewing screen.

- Module for generating straight waves

- Module for generating circular waves

- Module for generating two interfering circular waves

- Drainage Hose

- Immersion bodies for reflection and refraction (prism, biconcave lens and biconvex lens)

- Immersion bodies for setting up a single slit and a double slit

Dimensions:

- Tank structure: 400x300x320 mm, Blue color.

- Projection screen: 375x320 mm2 approx.

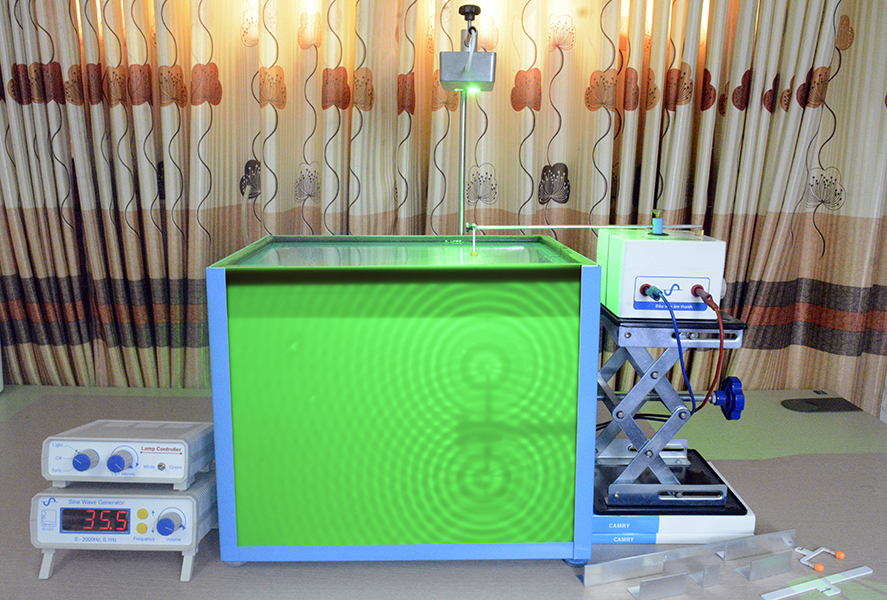

Ripple tank experiment

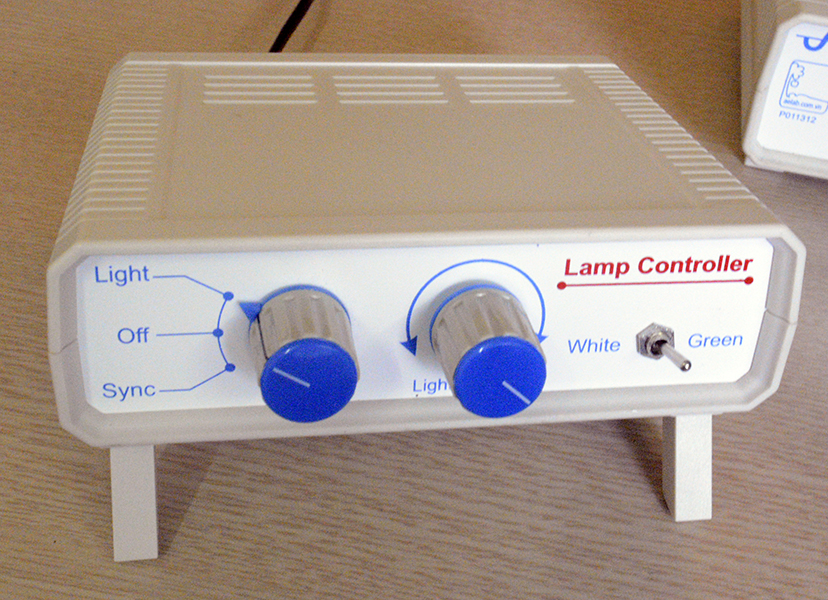

Ripple tank: Lamp controller

Ripple tank: Doppler effect

Ripple tank: Interference

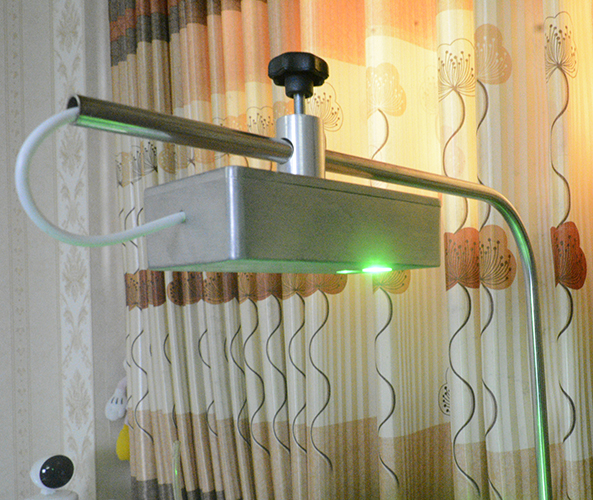

Ripple tank: lamp with white and green
